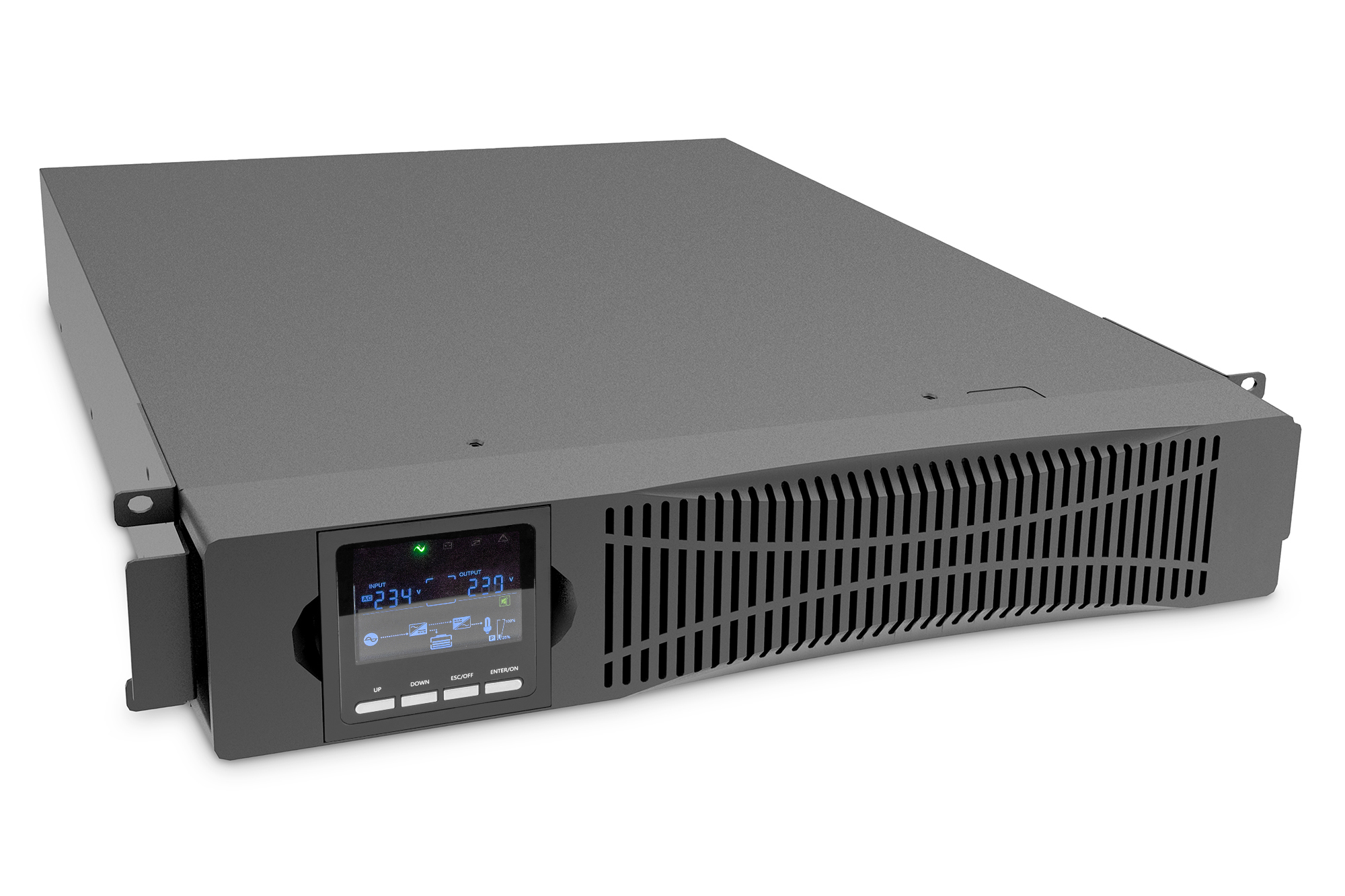

Digitus UPS 1500VA/1500W 12V/9Ah x2 battery – DN-170076

Lýsing Description The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements. Technical details Online double conversion system (VFI-SS-111) Input: IEC60320 C14 socket, 208/220/230/240 Vac Output: 8 x IEC60320 C13, max. 10A per socket outlet Nominal system power: 1500 VA / 1500 W, power factor 1.0 AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %. Internal battery pack can be replaced during operation. Battery: Valve-protected, non-spillable lead-acid battery Battery quantity: 3 x 12V x 9.0 Ah Full load running time: 4 min; half load running time: 12 min Charging: 4 hours to 90% capacity after full discharge Network connection: Optional SNMP/webcard (part number DN-170100) enables the UPS to be monitored remotely. Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional) Emergency Power-off (EPO) contact for switching off the UPS in an emergency Maximum operating temperature: 0 – 40 °C Storage temperature: -25 – 55 °C Relative humidity: 20 – 90% non-condensing Operating altitude: < 1500 m Product dimensions WxDxH (mm): 440 (19″) x 460 x 86.5 (2U) Product weight: 15.5 kg Shipping dimensions WxDxH (mm): 555 x 595 x 202 Shipping weight: 20.2 kg Safety standards: IEC/EN62040-1,IEC/EN60950-1 EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 Approval: CE declaration Scope of delivery: UPS device, UPS manual, UPS QSG, feet for tower installation, UPS software license, USB cable, mains cable (1.8m earthed socket (type 7/4) to IEC socket C14), IEC60320 C13 connection cable, 19″ installation bracket Optionally available: 19″ UPS mounting kit (profile rails), article number DN-170109 IP protection class: IP21 Heat dissipation: 486 BTU/h Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature). Attributes Installation: Desktop, Rack 0U, Rack 1U Installation: Desktop, Rack Plug: IEC 60320 C14 inlet Power: 1500VA – 3000VA Technology: Online double conversion Inch form factor (IEC 60297): 482.6 mm (19″) Package content 1 x OnLine UPS system, 1500 VA/ 1500 W 1 x UPS user manual 1 x USB connection cable, 1.2 m 1 x mains cable: 1.8 m 1 x RS232 cable UPS software license 19″ installation bracket Feet for tower installation Downloads and Certificates Additional Software UPS FAQ EN UPS FAQ DE UPS Software CE documents DoC EU PL Certificate ext. Link Datasheet Datasheet EN Extended Datasheet PL Overview Backuptime Extended Datasheet DE Extended Datasheet EN Backup Time-table Manual German English QIG UPS FAQ EN UPS FAQ DE
