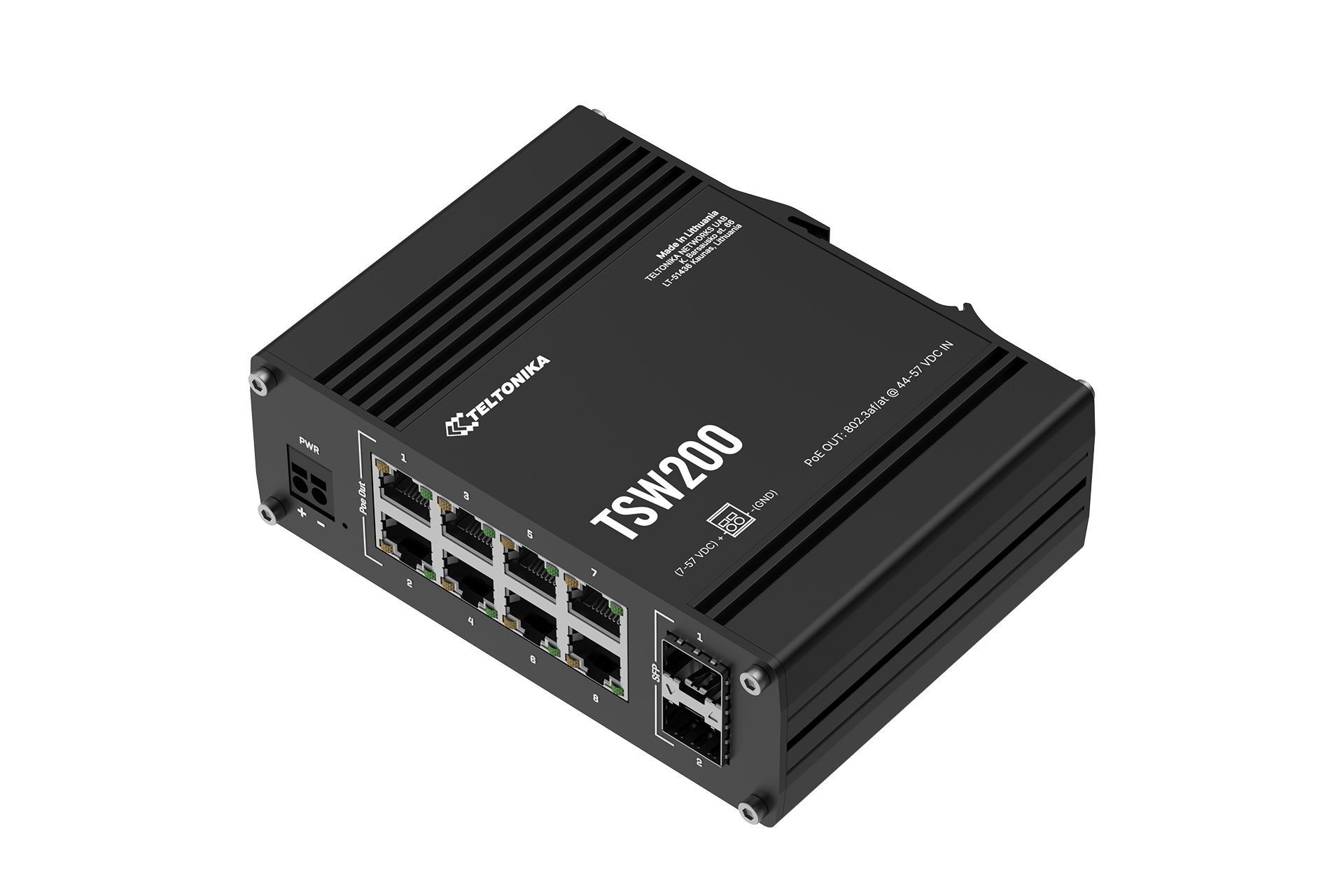

Teltonika Switch TSW200, 8 port POE , 2xSFP port

Lýsing TSW200 is industrial unmanaged switch from Teltonika Networks. TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network. This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply. Allar upplýsingar hér 75W spennugjafi hér Ethernet ETH 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover Fibre 2 x SFP ports IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z INDUSTRIAL PROTOCOLS Profinet Profinet Class A conformance (available with optional order code) POE OUT PoE ports Port 1 – 8 PoE standards IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE , Type 2), Alternative A (From batch 42) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE , Type 2), Alternative B (From batch 1-41) PoE Max Power per Port (at PSE) 30 W Total PoE Power Budget (at PSE) 240 W Performance Specifications Bandwidth (Non-blocking) 20 Gbps Packer buffer 128 KB MAC address table size 2K entries Jumbo frame support 9216 bytes Power Connector 2-pin industrial DC power socket Input voltage range 7 – 57 VDC PoE-Out input voltage range 44 – 57 VDC Power consumption Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W Surge at AC mains power port**: 1kV Line to line; 2kV line to ground, 1.2/50us, IEC 61000-4-5 Surge at signal port (Ethernet): 1kV Line to Ground, 1.2/50us, IEC 61000-4-5 **Tested with Teltonika’s PSU. Test does not apply to direct DC power. Physical Interfaces Ethernet 8 x RJ45 ports, 10/100/1000 Mbps Fibre 2 x SFP ports Status LEDs 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs Power 1 x 2-pin industrial DC power socket Other 1 x Grounding screw Casing material Full aluminium housing Dimensions (W x H x D) 132 x 44.2 x 95.1 mm Weight 517 g Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) Operating Environment Operating temperature -40 °C to 75 °C Operating humidity 5% to 95% non-condensing Ingress Protection Rating IP30 Regulatory & Type Approvals Regulatory CE, UKCA, CITC, ANRT, FCC, IC, CB, MTCTE EMC Emissions & Immunity Standards EN 55032:2015 A1:2020 EN 55035:2017 A11:2020 EN IEC 61000-3-2:2019 A1:2021 EN 61000-3-3:2013 A1:2019 ESD EN 61000-4-2:2009 Radiated Immunity EN IEC 61000-4-3:2020 EFT EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 A1:2017 CS EN 61000-4-6:2014 DIP EN IEC 61000-4-11:2020 Safety Standards IEC 62368-1:2018 EN IEC 62368-1:2020 A11:2020
